Prolam PLX20® Glulam Beams

Save time, money and your back with the Prolam PLX20!
No more Hiabs or extra guys required for your garage door lintel!

• 40% lighter than traditional garage door beams

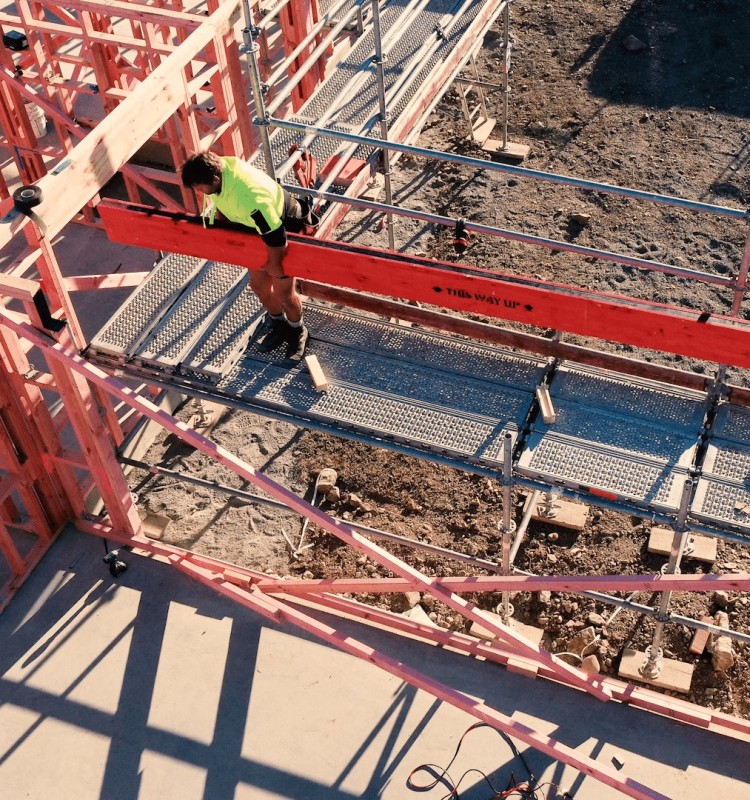

• Only 2 people required to install with no extra equipment
• Span further with smaller member

Watch our Explainer Video

Hear what the trade has to say

Hear What Builders
Have to Say

Product Details

Code: PLX20-250100 & PLX20-300100
Sizes: 240x90 & 290x90
Lengths: 3.6m, 4.2m, 4.8m, 5.4m, 6.0m, 6.6m
Precamber (mm) = Length (mm)/800
Treatment: H1.2
Grade: Non-Visual
Applications: Garage lintels, Ridge beams, Floor beams and Rafters

Key Features and Benefits

• Approx 40% lighter in weight than alternative products
• Quicker and easier to install, no extra assembly, equipment or staff required
• Span further with smaller member
• Competitively priced
• Easy to Specify using Prolam Specifier.
• NZ Made sustainable product

Designed and manufactured in New Zealand, the PLX20 is an innovative laminated beam with steel inserted into the top and bottom laminates. This gives greater strength allowing a smaller member beam to span further being ideal for garage door lintels, ridge beams, floor beams and rafters.

This innovative and compact design is approximately 40% lighter in weight than alternative products on the market, meaning installation is quick and easy.

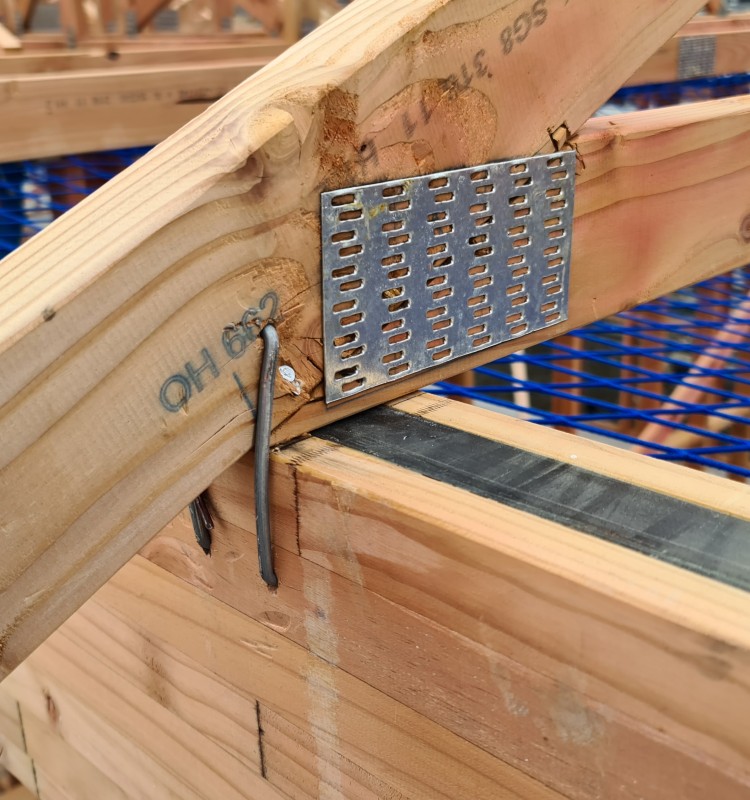

No extra assembly, equipment or staff are required for installation. The beam can be easily cut to length on site and secured with our recommended fixings.
It is the responsibility of the designer to establish hold down fixing’s accordance with NZS3604:2012 or an alternative fixing solution.

With a higher percentage of timber than steel, the PLX20 is a more sustainable choice coming from a renewable resource.

How can I Specify?

The PLX20 is easy to specify on our Online Specifier, Span tables and on Masterspec.
Check out our short video on how to Specify PLX20® using the Prolam Specifier.

Where can I buy these from?

We supply through timber merchants throughout the country such as: Placemakers, Carters, ITM, Mitre 10, Bunnings, Buildlink
Get in touch with them today.

Want to know more?

Click Here to get in touch!
Or check our FAQ laminated beams page here.

Prolam Glulam Beams

Product Downloads

Prolam structural laminated timber beams can be used in any form of construction where the structure relies on AS/NZS 1170: 2002 and NZ 3603 1993. The design can be from the Prolam online software, span tables or specific design by an engineer using Prolam’s structural properties. All structural timber products must be stored, handled and installed in accordance with all Prolam’s installation requirements. Prolam structural laminated timber works well in harsh environments, for example in corrosive chemical stores, fell-monger, acid plants, salt-water environments and swimming pools, as it does not rust and the glues used are service class 3 certified.

Limitations on use

This laminated treated product must be protected from the elements until it is sealed. Prolam structural timber can be supplied with a temporary sealer if required. Timber naturally absorbs moisture from the surrounding environment that can cause the product to alter dimensionally. All exposed structural timber must be sealed with a good quality paint or stain system within 14 days of delivery to dramatically reduce the incidence of dimensional change and increases longevity. All cuts, holes and rebates must also be sealed to prevent the absorption of moisture.

Prolam structural timber products can be used in specific fire performance situations, and must be designed in conjunction with a fire engineer.

Building code statement of compliance

Prolam structural laminated timber installed in accordance with the Prolam installation requirements, will comply with the below performance clauses of the New Zealand building code.

Structure B1/AS1: meets the requirements of B1.3.1 B1.3.2 B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS1170:2002 for engineering span tables, AS/NZS 1328:1998 and AS5068 for building element
Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. And can be used in service class 3 situations provided H3.2 treatment or higher is used. All timber is treated in accordance with NZS3640. Prolam treats it’s own timber, and is third party audited to ensure compliance to the New Zealand treatment standard. Correct treatments must be used in the right places.
Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT- 118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the follow standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

NZBC designed to comply

B1
Structure

B2
Durability

B3
Protection from Fire

B4
Hazardous Building Materials

PLX20 Properties

Notes:
(1) PLX20 intended for use as a beam and not as a tension or compression member.
(2) PLX20 bending strength and MoE about the major axis have been determined from testing.
Other properties are based on SG6 timber.

Features & Benefits

Cost Effectiveness

High weight-to-strength ratio of Prolam allows for maximum loads over large spans with the smallest possible end sections.

Product Quality

Prolam manufactured in accordance with AS/NZS 1328 Glue Laminated Structural Timber standard.

Fire Safety

Extensive fire test data shows that Prolam beams maintain structural load support for measurable periods of time in fire situations.

Renewable Resource

Made from renewable New Zealand plantation timber, Prolam uses 14 times less energy to produce compared to the equivalent steel beam.

Chemical Resistance

Prolam works well in harsh environments as it does not rust and the glues used are service class 3 certified.
